Case Study — Industrial & Logistics

Logistics Distribution Centre

Multi-block sheds, dock banks and a working truck court — built from four disagreeing source formats and composited into real aerial photography.

Distribution & LogisticsAerial Composite VisualizationPraxis Studio

On an industrial scheme the shed is the easy part. The work is the site — dock banks, trailer standing, the turning geometry of the truck court — and the accuracy of the people who will read the image.

7Delivered renders

3Revision rounds

12Corrections in one round

1d 8hTo answer all twelve

Project type

Multi-Block Distribution Centre

Services

Industrial & Logistics Visualization
Aerial Photo Composite
Site & Truck Court Modelling
Revision Handling
Context Integration

Deliverables

3 Aerial Bird Views
Reissued Final Set
High-resolution Imagery

The Brief

What arrived, and in how many formats

The scheme came as a SketchUp model, an IFC export, a DWG plan set and a PDF plan set — four descriptions of the same site that did not agree at every point. With them came the client's own nominated camera angles and a brand colour specification given as RAL references, not as a picture to match.

The deliverable was aerial: the scheme sitting inside real photography of a working industrial estate, from angles the client had chosen before we started.

SketchUp modelIFC modelDWG plan setPDF plan setClient camera anglesBrand RAL colour specSite location

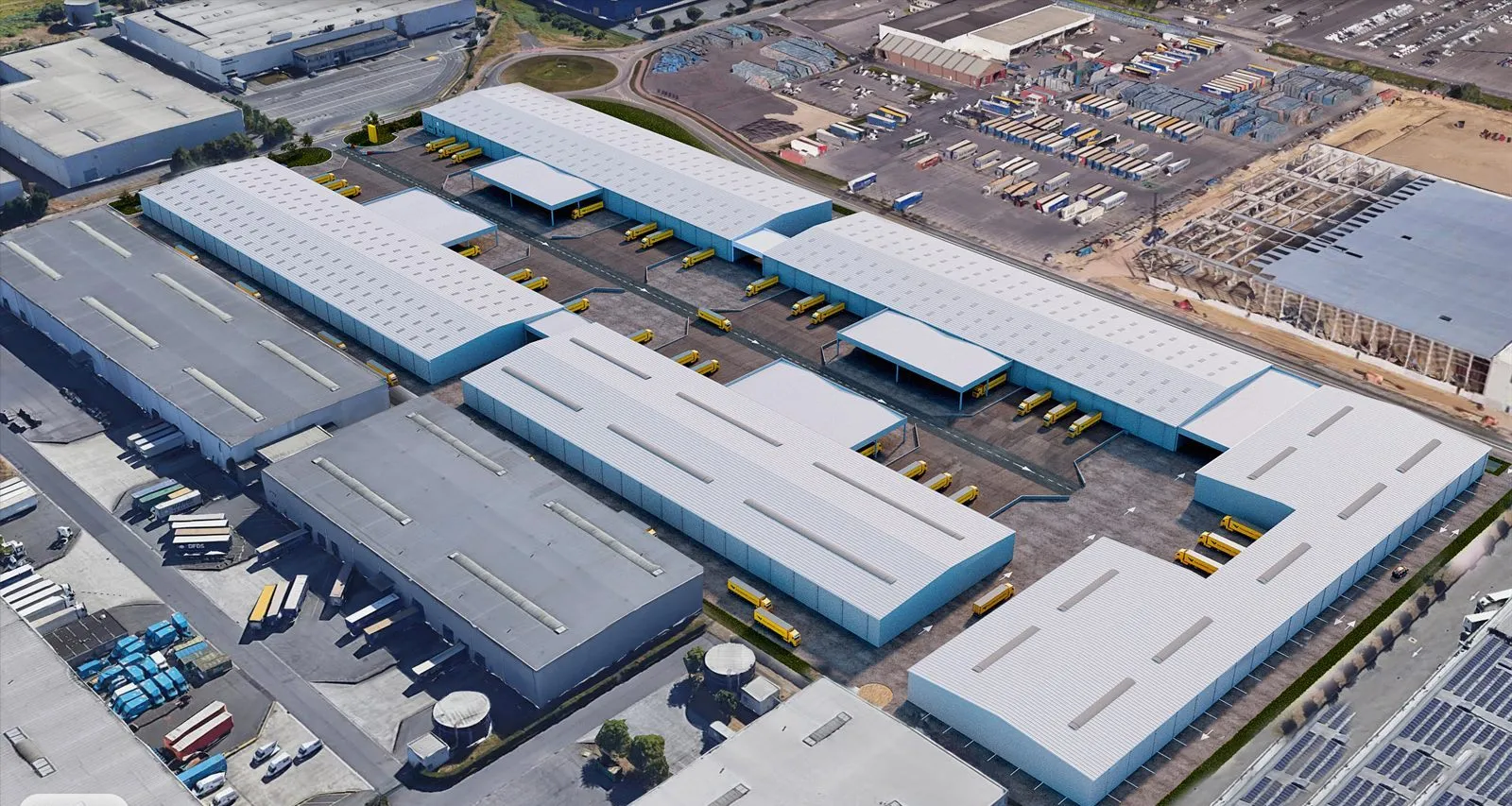

Aerial angle across the truck court, dock banks and trailer standing

Challenges

Four problems, held at once

The site is the work

On a distribution centre the building is a simple volume and everything difficult sits around it — dock banks, trailer standing, the turning geometry of the truck court, kerb lines and the direction vehicles actually travel. Getting the shed right is not the job.

Real aerial context

The scheme had to sit inside genuine aerial photography of an operating industrial estate, matched for perspective, sun angle and haze. A composite that floats is worse than no composite.

Four source formats, one truth

SketchUp, IFC, DWG and PDF all described the same scheme and did not agree everywhere. The model had to reconcile them and the reply had to say which had been followed.

Operational accuracy

Vehicles were not decoration. The client specified which trucks, in which bays, travelling in which direction — because the image was going to be read by people who run the site.

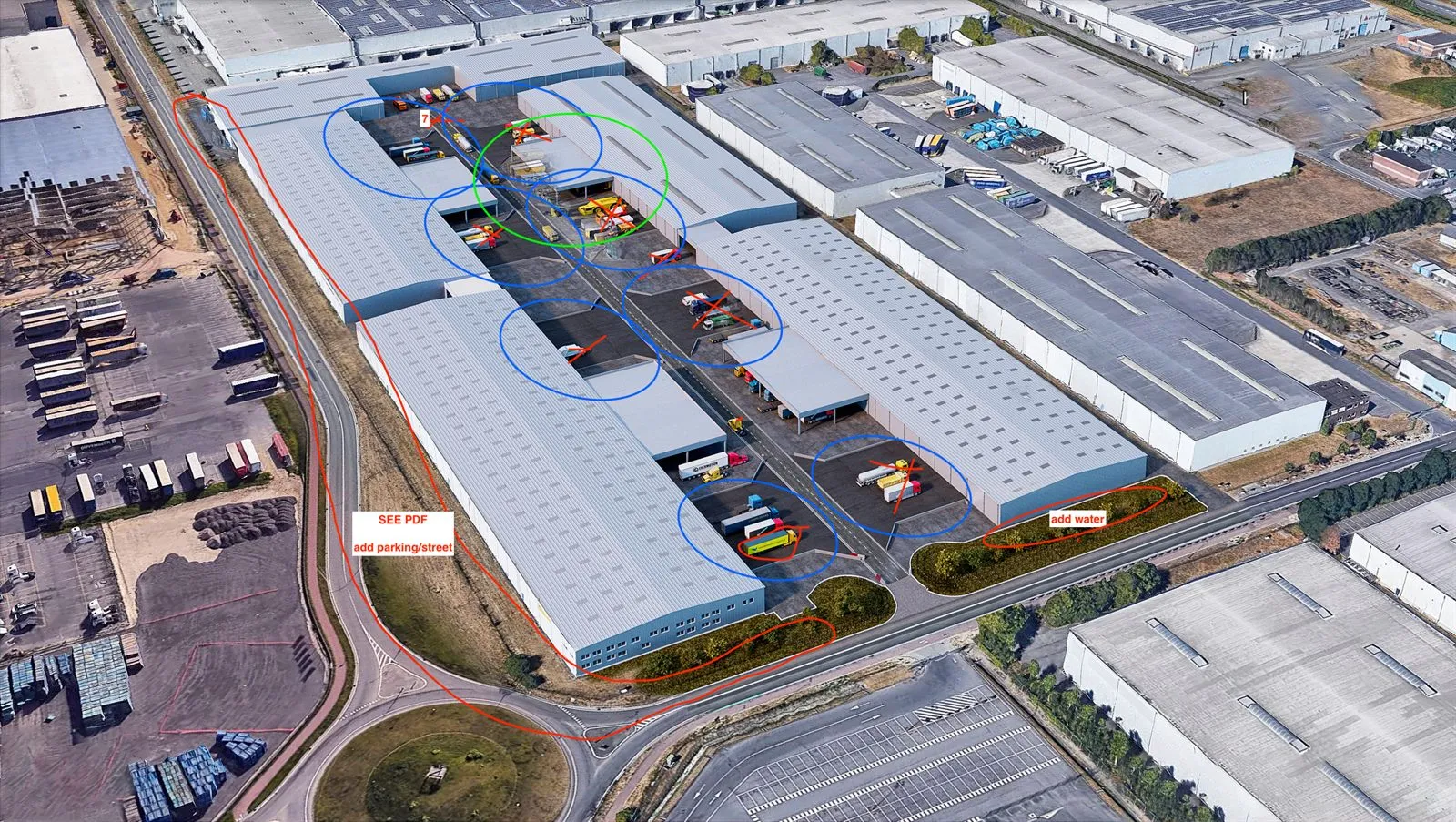

The client's marked-up bird view — circled corrections covering vehicles, parking, circulation direction and dock slope — The markup as it arrived. Twelve numbered items across two views — each one pointing at the drawing, model or plan that settled it.

Our Workflow

Nine stages, drawings to composite

01Reconcile SketchUp, IFC, DWG and PDF
02Build the blocks, docks and canopies
03Lay out truck court, trailer standing and parking
04Lock the client-nominated camera angles
05Match the aerial plate for perspective and light
06Apply materials to the brand colour spec
07Issue draft views for markup
08Resolve every numbered item against its source document
09Reissue the full set

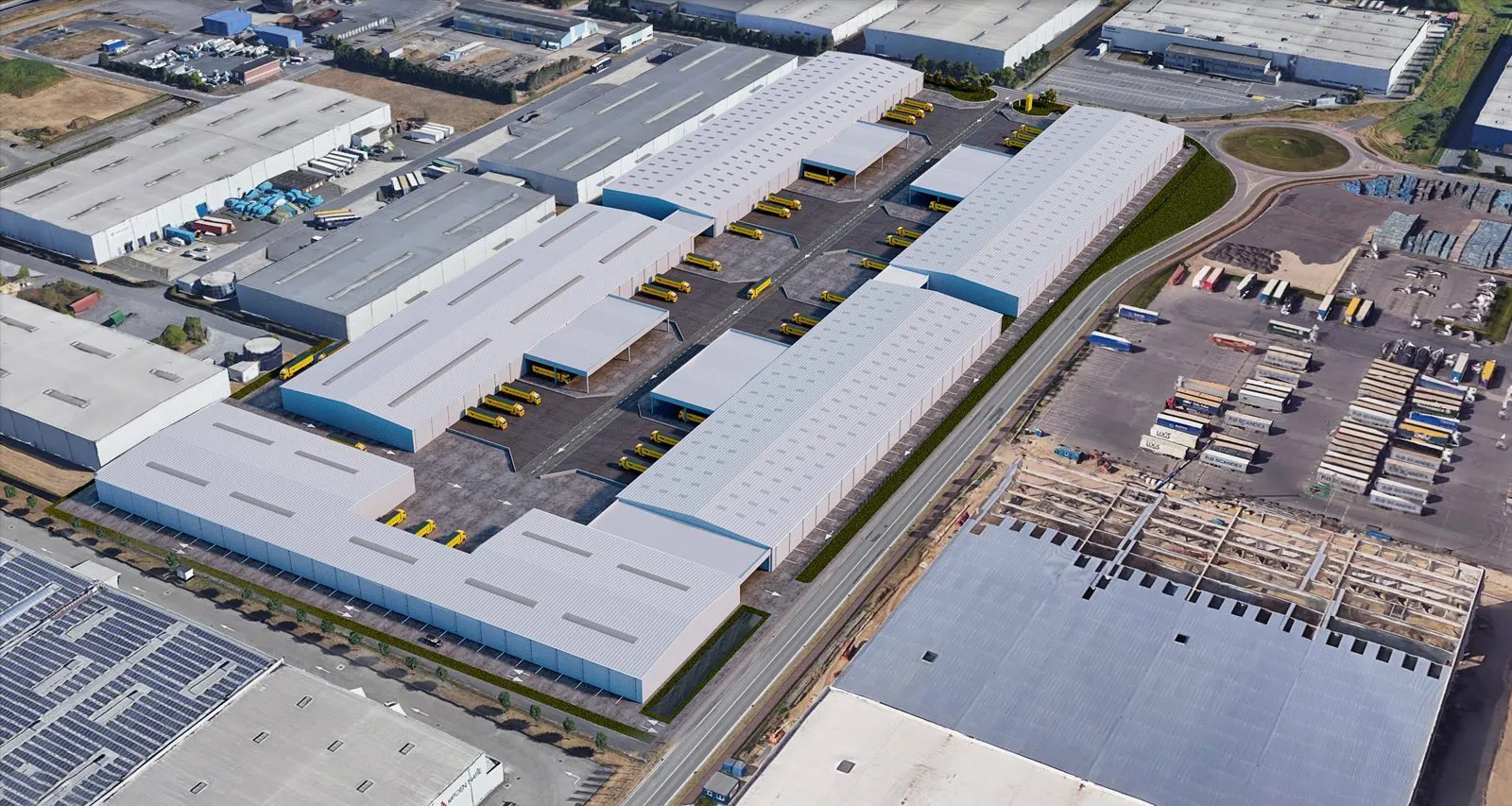

A third aerial angle from the reissued final set

The Turning Point

Twelve corrections, one round

The third round was the real one. Twelve numbered items across two bird views — and not a single one was a matter of taste. Every correction pointed at a document: use the position of the trucks on pdf/dwg · the parking space is missing, see pdf/dwg · trucks drive in one direction, see arrows on pdf/dwg · docks there is a slope, see sketchup file. All twelve were resolved and the complete set reissued in one day and eight hours. Drag to compare the marked-up view against what went back.

The reissued aerial view with every marked item resolved

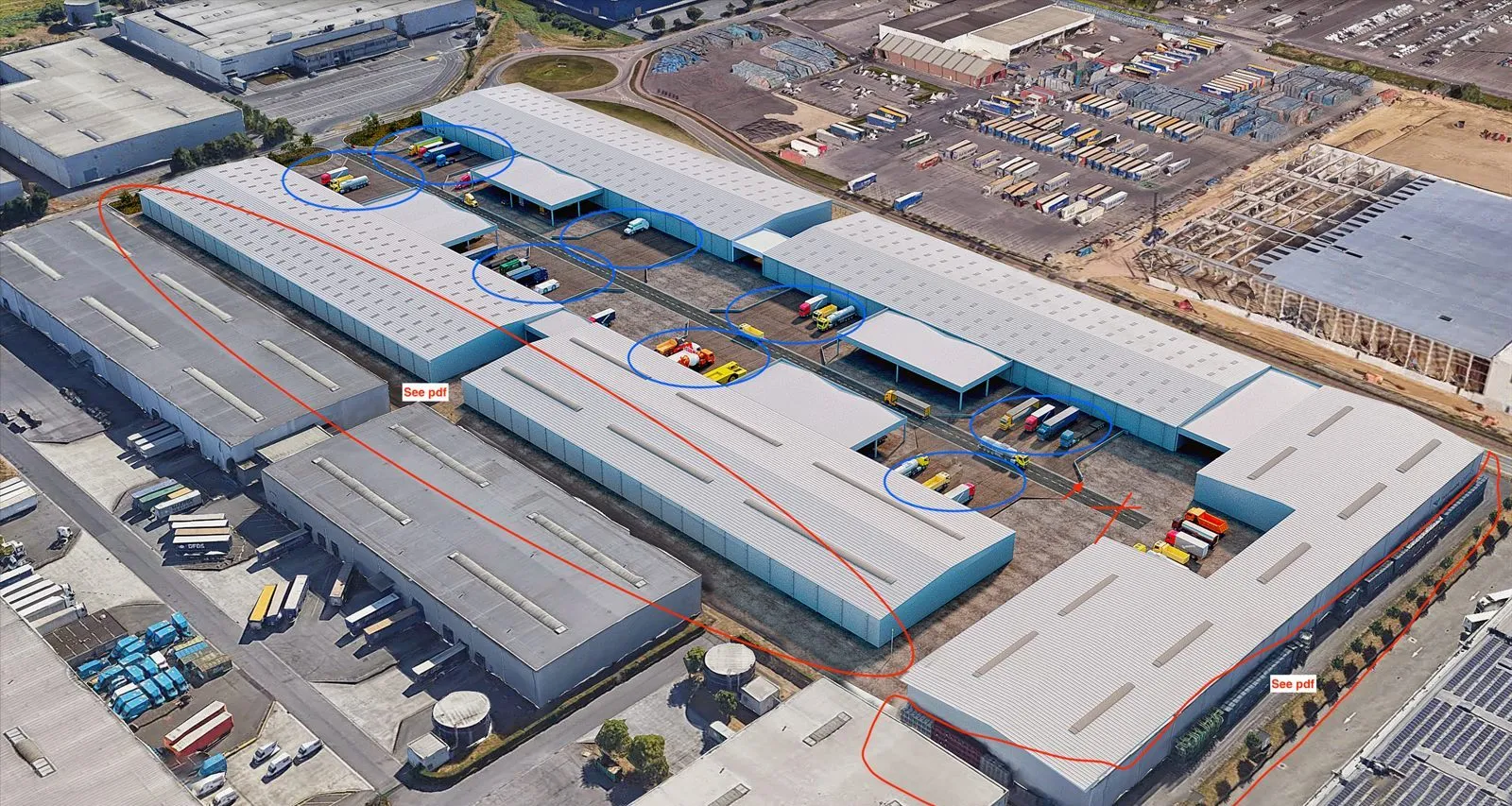

The client's marked-up bird view with the numbered corrections

Trucks replaced with the client-nominated vehicle type
Vehicles repositioned to the bays shown on pdf/dwg
One-way circulation set to the arrows on the drawings
Left parking area added from the drawing set
Right parking area added from the drawing set
Missing truck line reinstated
Dock slope taken from the SketchUp model
Road run corrected to stop at the slope
Water feature added per the plan
Composite rebuilt where the edge read poorly

The reissued aerial view of the distribution centre

How a revision round should work

A correction that cites a drawing can be closed. A correction that cites an opinion can only be negotiated.

Every item traced to a source
Whole set reissued together
Geometry from the model, not the eye
Circulation from the drawings
One round, twelve items

Final Deliverables

The production set

Aerial view of a multi-block logistics distribution centre with dock banks and loaded trailer bays

Second aerial angle across the truck court and trailer standing

Third aerial angle showing the full site and circulation

Outcome

What the record actually shows

Seven delivered renders across three rounds, and a final round in which twelve separate corrections — vehicles, parking, circulation, dock slope, road run and composite edges — were closed together and reissued as a complete set.
